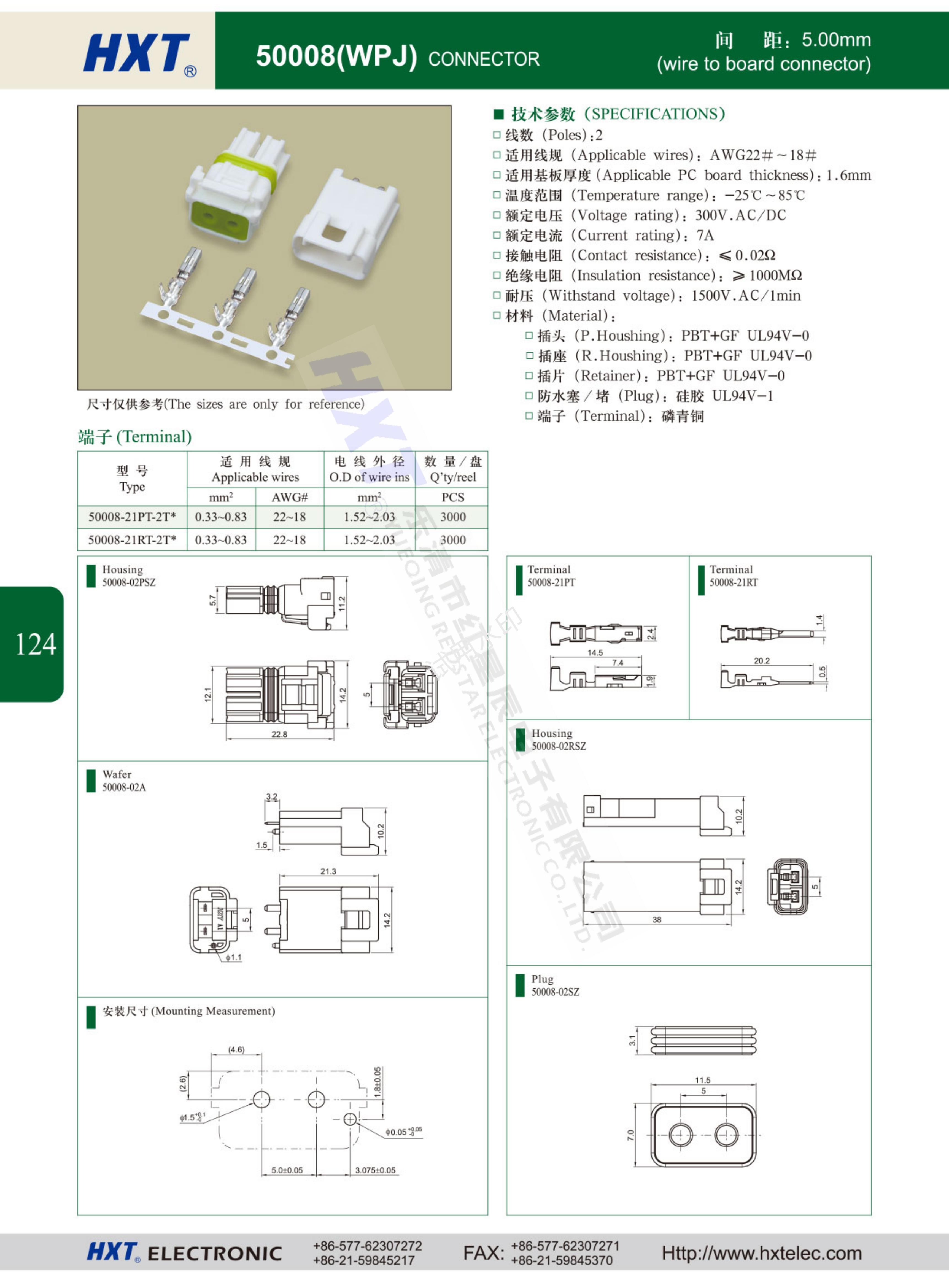

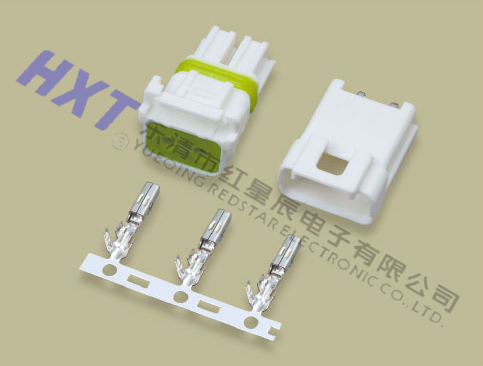

50008(WPJ)連接器

■技術(shù)參數(shù)(SPECIFICATIONS)

口線數(shù)(Poles):2

口適用線規(guī)(Applicable wires):AWG22#~18#

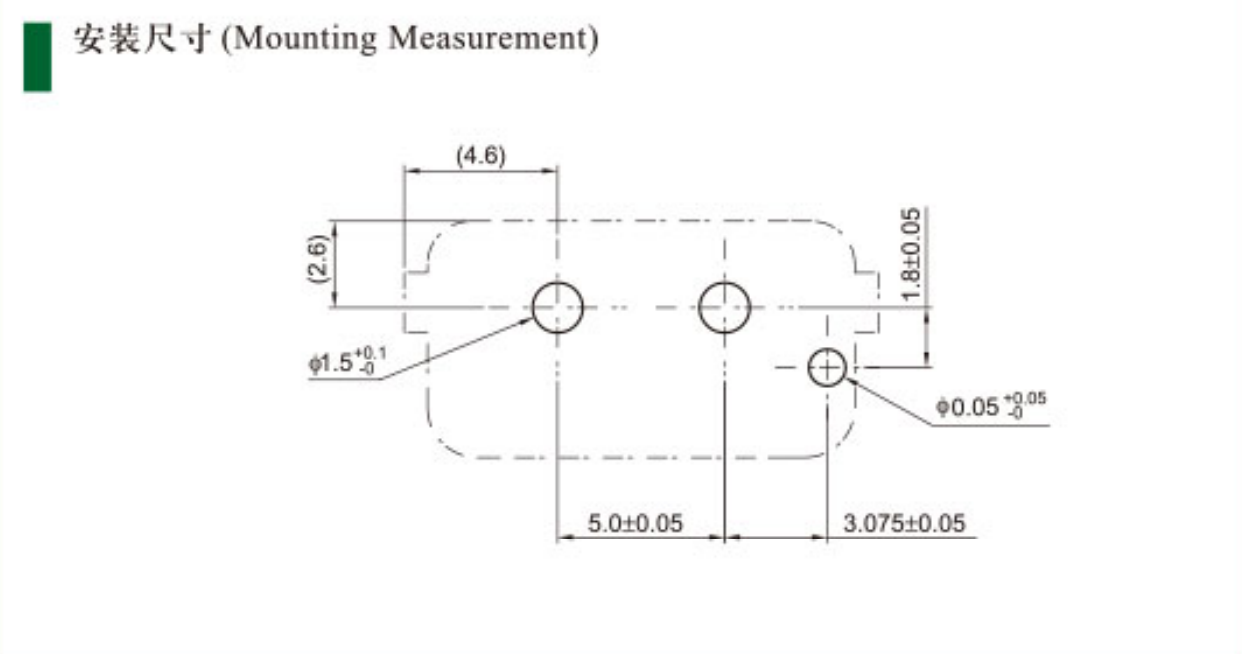

口適用基板厚度(Applicable PC board thickness):1.6mm

口溫度范圍(Temperature range):-25℃~85℃

口額定電壓(Voltage rating):300V.AC/DC

口額定電流(Current rating):7A

口接觸電阻(Contact resistance):≤0.02Ω

口絕緣電阻(Insulation resistance):≥1000MQ

口耐壓(Withstand voltage):1500V.AC/1min

口材料(Material):

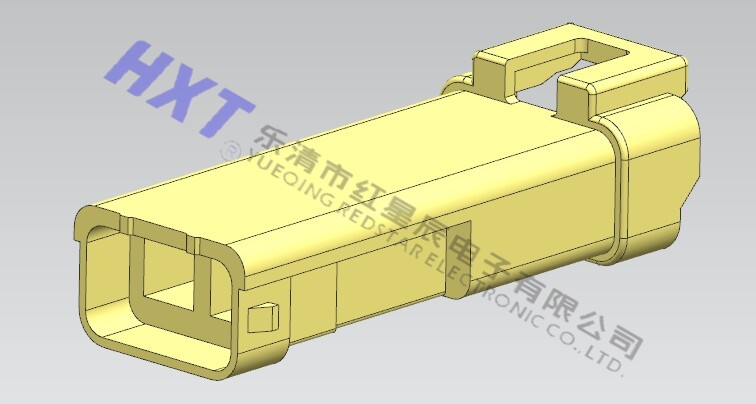

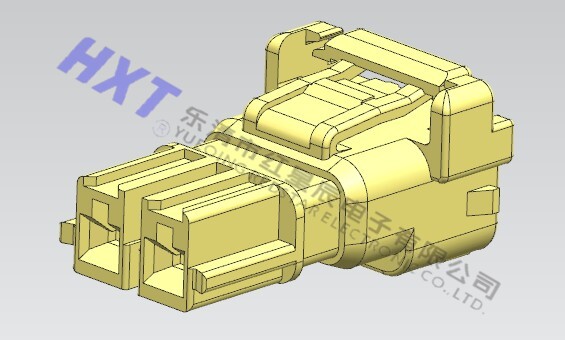

口插頭(P.Houshing):PBT+GF UL94V-0

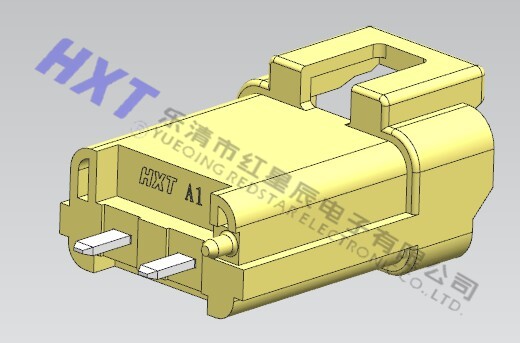

口插座(R.Houshing):PBT+GF UL94V-0

口插片(Retainer):PBT+GF UL94V-0

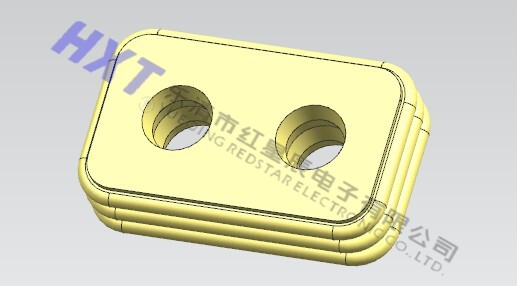

口防水塞/堵(Plug):硅膠UL94V-1

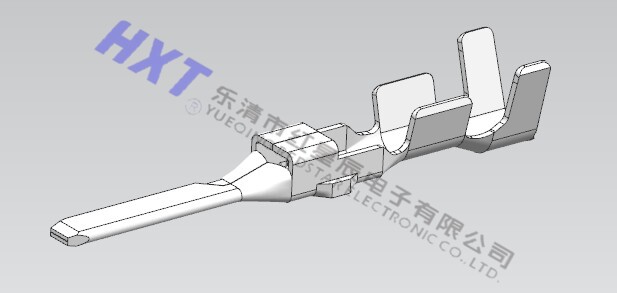

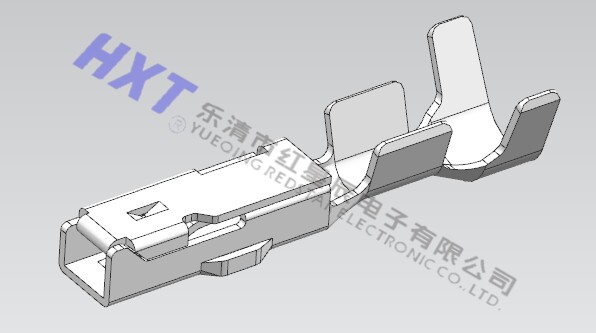

口端子(Terminal):磷青銅
