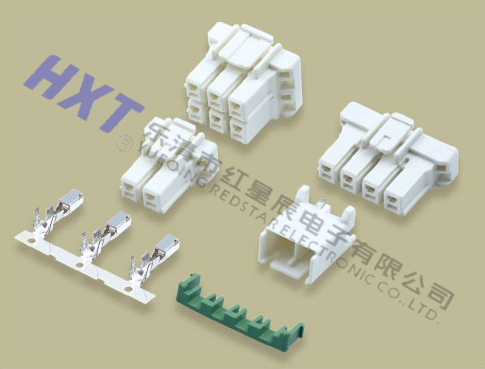

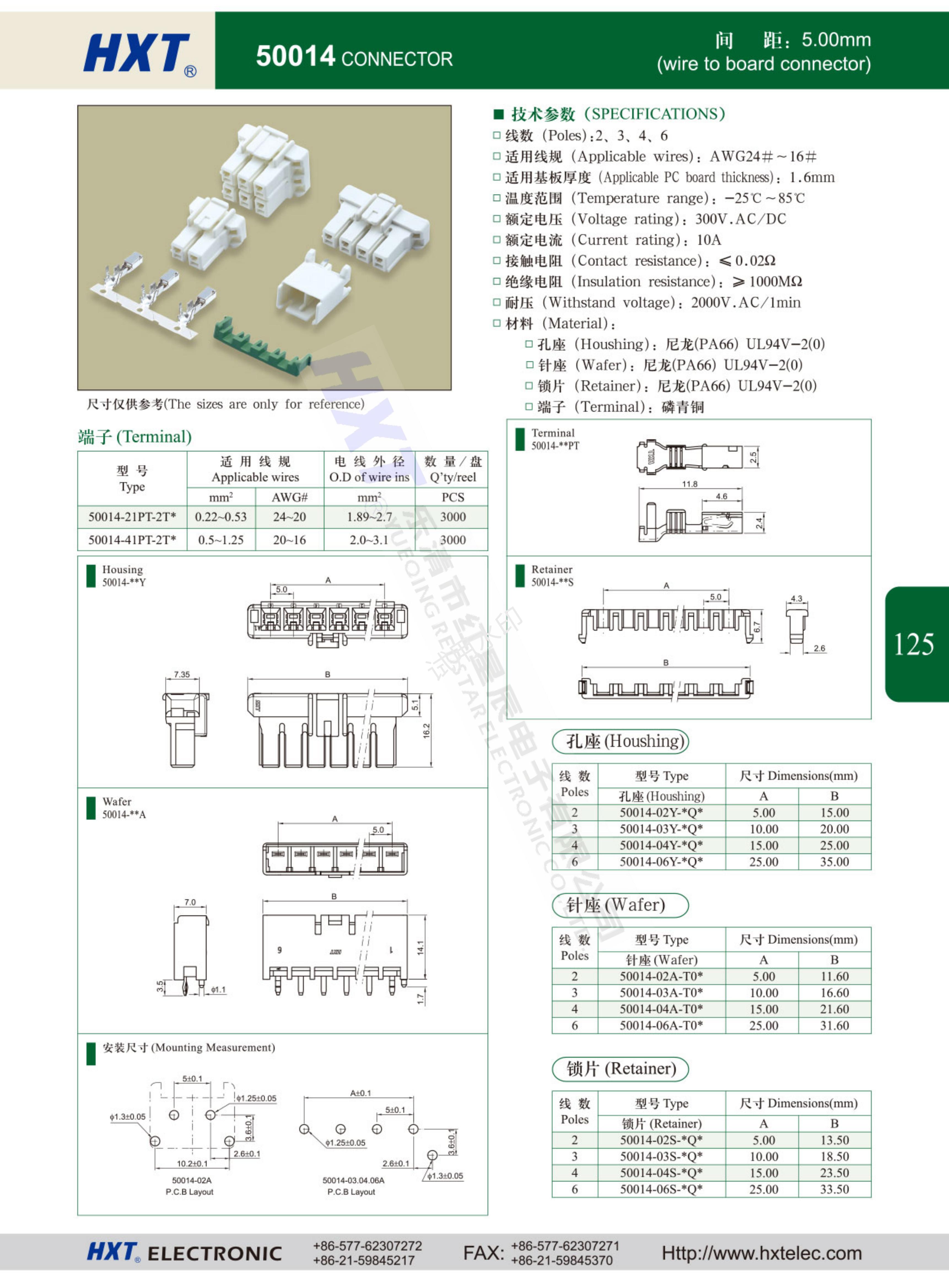

50014 連接器

■技術(shù)參數(shù)(SPECIFICATIONS)

口線數(shù)(Poles):2、3、4、6

口適用線規(guī)(Applicable wires):AWG24#~16#

口適用基板厚度(Applicable PC board thickness):1.6mm

口溫度范圍(Temperature range):-25℃~85℃

口額定電壓(Voltage rating):300V.AC/DC

口額定電流(Current rating):10A

口接觸電阻(Contact resistance):≤0.02Ω

口絕緣電阻(Insulation resistance):≥1000MΩ

口耐壓(Withstand voltage):2000V.AC/1min

口材料(Material):

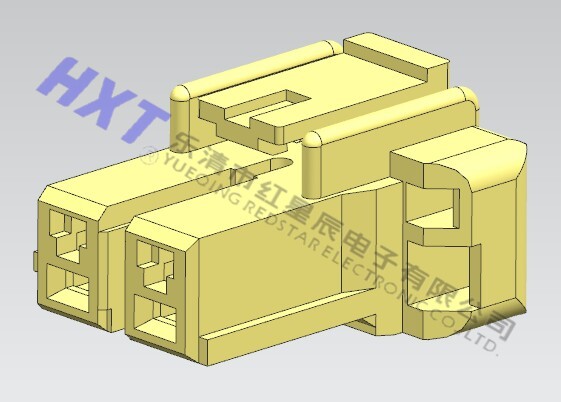

口孔座(Houshing):尼龍(PA66)UL94V-2(0)

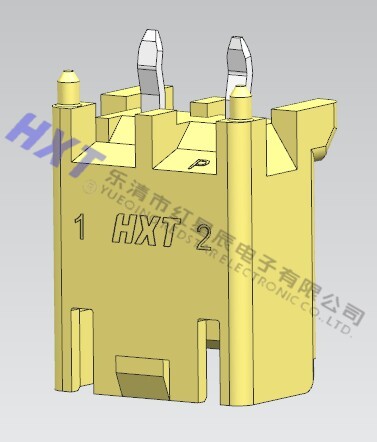

口針座(Wafer):尼龍(PA66)UL94V-2(0)

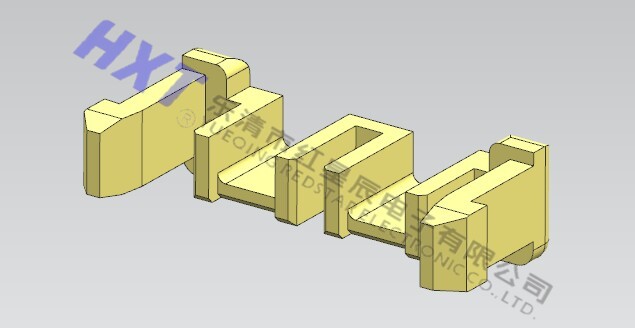

口鎖片(Retainer):尼龍(PA66)UL94V-2(0)

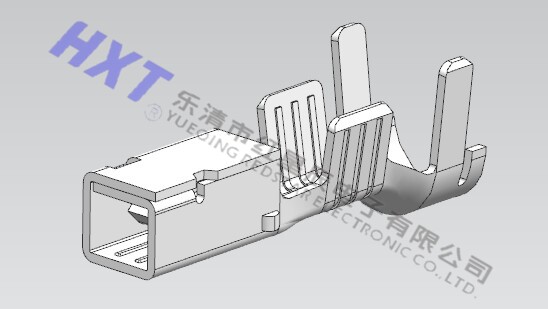

口端子(Terminal):磷青銅
